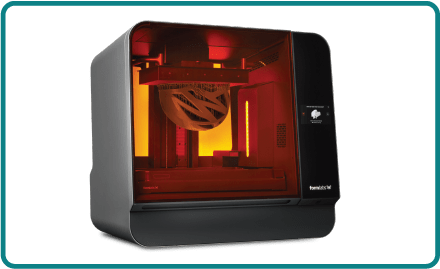

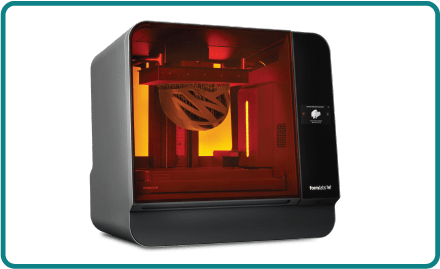

FORMLABS FORM 3

SKU: 5-1-1-1-1-1.

FormsLab Form 3

Accuracy with Reliability

Start industrial quality 3D printing in Pakistan using Formlabs Form 3. A reliable SLA printer best for prototyping and production; to boost your business needs

Why Buy Formlabs Form 3?

Clean laser point is achieved every time, using a spatial filter
Premium quality printing along the entire built platform is achieved with a parabolic mirror
Active monitoring for scaling, dust and power is done using optical sensors
Material changing is simplified with convenient cartridge system
Formlabs printers don’t require any specialized training. One can simply unbox, plug and start printing

Pinpoint Precision

Intelligently designed Light Processing Unit (LPU) uses system of lenses and mirrors to ensure precise results every time. Form 3 offers XY resolution of 25 µm having laser rated 250 mW

Reliable Printing

Form 3 offers hassle-free printing of your creative ideas via its accurate feedback system. High-end sensors constantly monitor and notify the user about print conditions.

TECHNICAL SPECIFICATIONS

Printing Technology
Low Force Stereolithography (LFS)™

Resin Filling System
Automated

Build Volume (W x D x H)
14.5 × 14.5 × 18.5 cm (5.7 × 5.7 × 7.3 in)

Minimum Access Dimensions (W × D × H)
40.5 × 53 × 78 cm (15.9 × 20.9 × 30.7 in)

Printer Dimensions (W × D × H)
40.5 × 37.5 × 53 cm (15.9 × 14.8 × 20.9 in)

Layer Thickness (Axis Resolution)ᵇ
25 – 300 microns (.001 – .012 in)

XY Resolution
25 microns (0.001 in)

Laser Spot Size
85 microns (0.0033 in)

Resin Cartridges
1

Biocompatible Materials
No

Supports
Auto-Generated, Light-Touch Removal

Internal Temperature
Auto-heats to 35 °C (Auto-heats to 95 °F)

Temperature Control
Air-heated print chamber

Operating Environment
18 – 28 °C (64 – 82 °F)

Weight
17.5 kg, 38.5 lbs

Power Requirements
100–240 VAC, 2.5 A, 50/60 Hz, 220 W

Laser Specifications
1 Light Processing Unit, EN 60825-1:2007 certified, Class 1 Laser Product, 405 nm wavelength, 250 mW power, 85 micron (0.0033 in) laser spot

Connectivity
Wi-Fi (2.4, 5 GHz), Ethernet (1000 Mbit), USB 2.0

Printer Control
5.5″ interactive touchscreen, 1280 × 720 resolution

Alerts
Touchscreen alerts, SMS/email via Dashboard, Two LED status indicators, Speaker for audio alerts

System Requirements
Windows 7 (64-bit) and up, Mac OS X 10.12 and up, OpenGL 2.1
4 GB RAM (8 GB recommended)

PreForm Print Setup Features
One-Click Print, Adaptive layer thickness for faster printing with fine details, Remote Print, Auto-orient for optimal print position, Auto-mesh repair, Auto-generation of supports, Rotate, scale, duplicate, and mirror, Layer slicer for path inspection, Available in multiple languages

Dashboard Printer Management Features
Manage prints and printers via the cloud, Track resin and tank usage over time, SMS and email alerts
Create enterprise group accounts with admins to more easily share printers and control access

File Types
STL and OBJ file input, FORM file output

Compatible up to 28+ unique resin materials

Along with the exceptional functional reliability, Formlabs Form 3L offers versatile compatibility with numerous materials.

Standard Resin

Formlabs Standard Resin

High Detail
Smooth Surface Finish
No post-curing

Formlabs Engineering Resin

High Detail
Smooth Surface Finish
No post-curing

Formlabs Flexible Resin

Durability in bending
Compressive strength
Fatigue resistance

Formlabs Castable Wax

High strength and stiffness
Shape retention ability
No post-curing

Castable Resin

FormsLab Form 3 is compatible with bestselling castable resins which works at UV wavelength of 405nm Now you can print from filigree to medals, as well from chaton settings to signet rings.

Senertek Resin Wax v3

Excellent Fluidity, no residue, no ash, ultra clean burnout

BlueCast x10

Excellent casting of small engravings, Fast Curing, No need of post-curing, Best for Direct Casting

Prototyping Workflow

Grit 3D manages the complete prototyping workflow for our customer. We eliminate all the hassle and learning curve when it comes to design and 3D Printing.

Design for 3D Printing

Prototyping starts with 3D designing on CAD software and preparing an STL file which is readable for any slicer software, which develops a file that is an instruction code for the 3D Printer

3D Printing

After selecting the correct print settings and slicing the STL file, the file is sent to 3D Printer over wifi or a USB. Intended Resin material is added, the shroud is covered and the printing starts

Post Process

Once the printing is finished, the resin printed parts need to be washed in IPA solvent, the supports are removed (if any) then carefully cured under UV Light inorder to achieve their optimal mechanical properties
