Avail our Reverse Engineering Services to create a 3D digital model of any existing physical part.
The process involves measuring an object using 3D scanning technologies like coordinate-measuring machines, 3D laser scanners, or computed tomography or using manual measuring instruments.

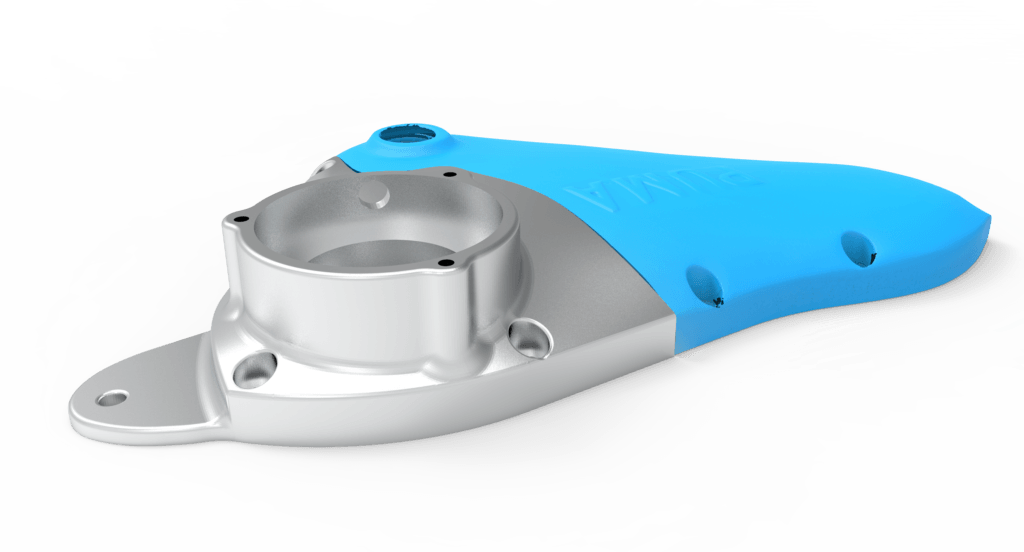

Grit 3D has years of experience in providing reverse engineering services for objects that have any kind of complex or freeform shape. Our most accurate measurement systems gather the relevant data of the model that our highly trained engineers use to complete the surfacing of the mod.el. We also have expertise in recreating 3D CAD models from difficult-to-read drawings and/or from existing or damaged physical components.

Our 3D Reverse Engineering Abilities

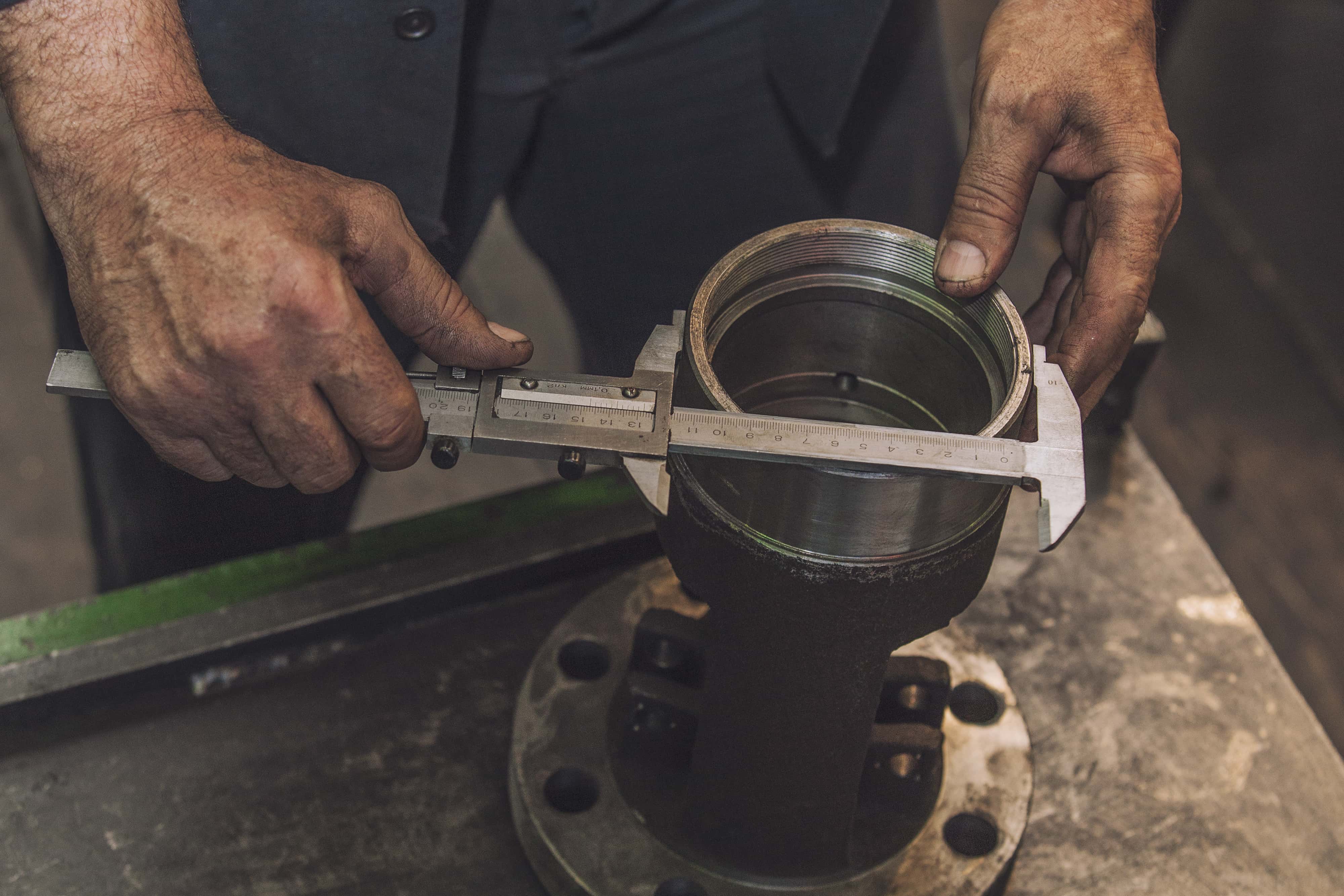

Detailed Dimensional Analysis
Part-to-CAD Modeling

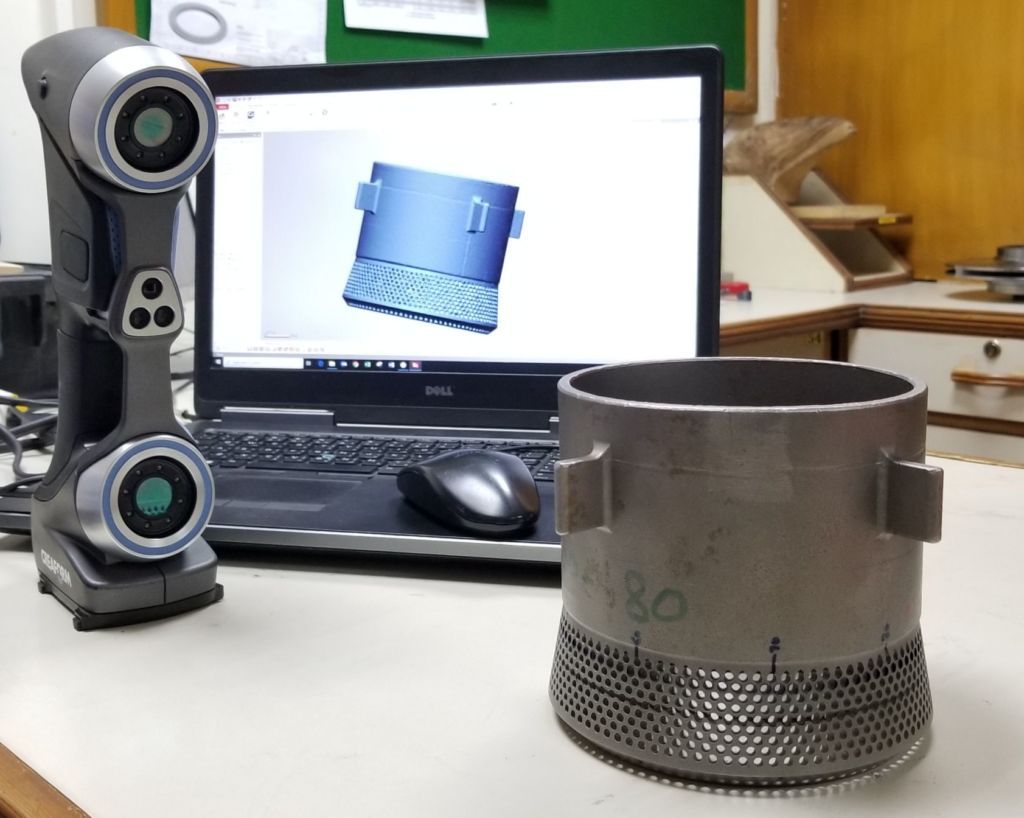

3D Laser Scanning
3D Digitization & CAD archiving

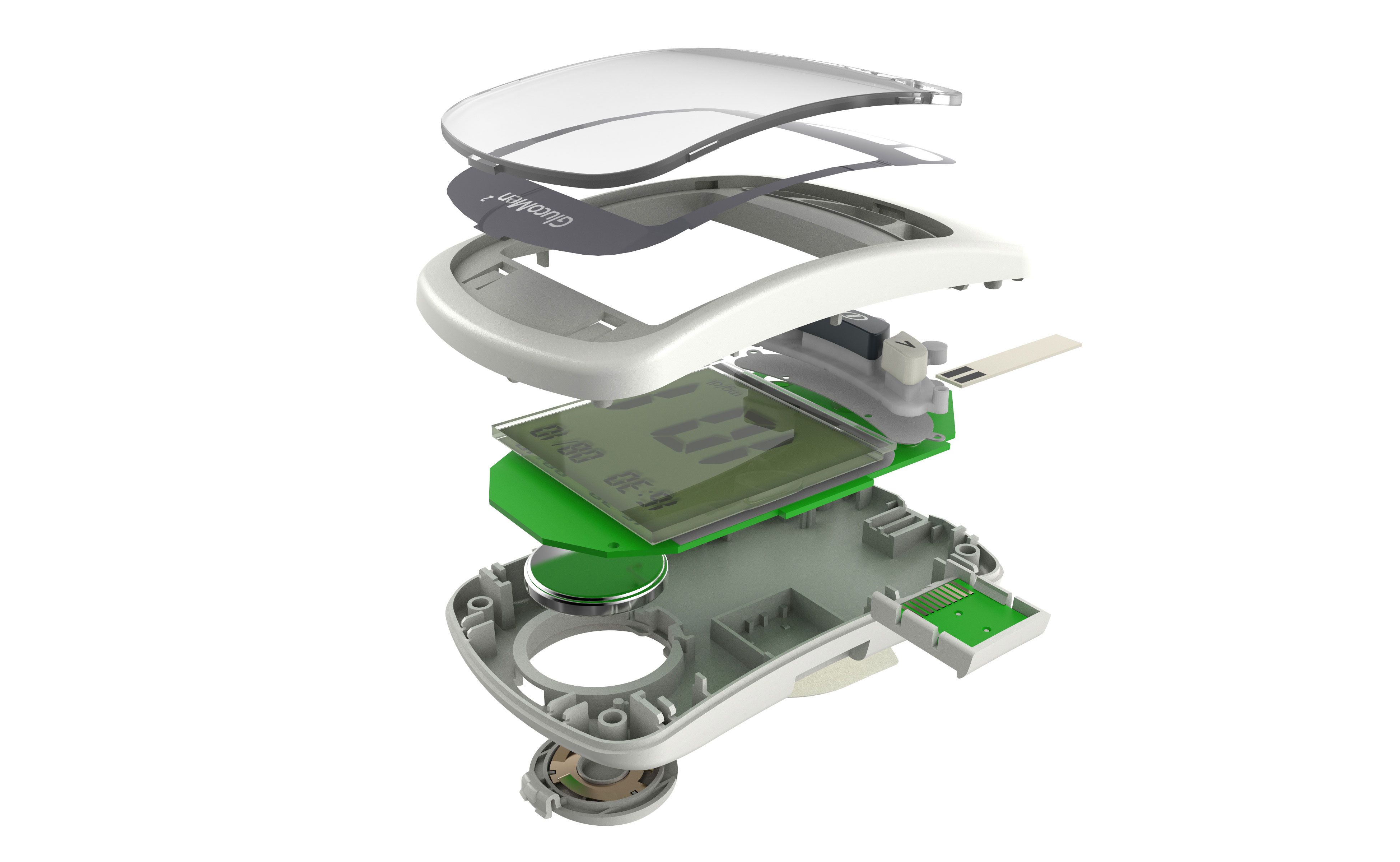

Product, Component and/or assembly design
Rapid Prototype Manufacturing

Our cutting-edge reverse engineering tools are able to obtain accurate data which can easily be turned into a 3D CAD model. The measured data alone lacks topological information, which is why it is processed and modeled into a more usable format such as NURBS surfaces, meshed form or a CAD model.

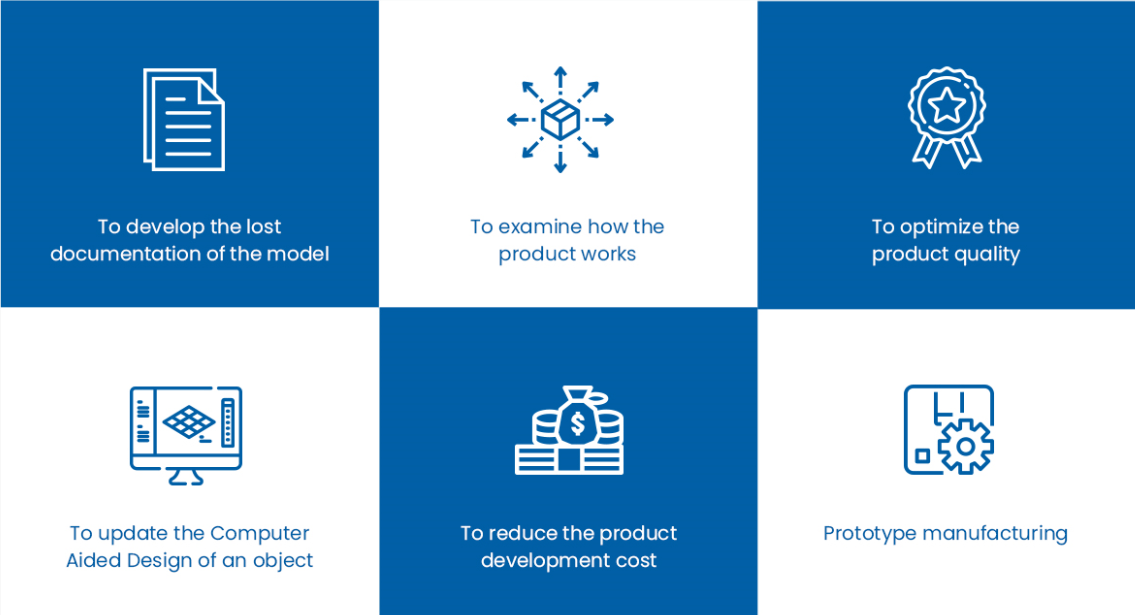

Reasons for reverse engineering
