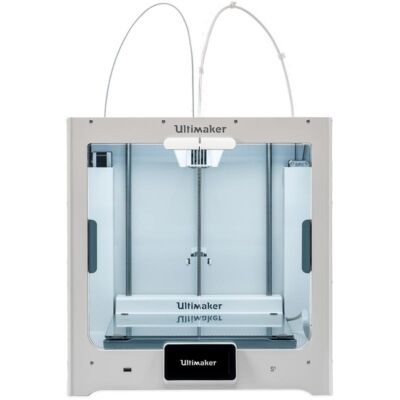

Ultimaker S5

Powerful And Versatile Industrial 3D Printing

Most Powerful and reliable 3D Printer that delivers Industrial Class Results.  Looking to setup an Industrial Grade 3D Printer which is easy to setup, with high uptime and unmatched dual extrusion technology. Now Offering Ultimaker S5 in Pakistan which is the one stop end for all your Professional and Industrial 3D Printing Solutions

1-Ultimaker-S5-Grit3d-Pakistan

 Think Big, Print Big And Scale Your Production

Why Ultimaker S5

Now Print Normal to very exotic Material like carbon fiber and glass with our special Print core CC (purchase separately)
For nonabrasive filaments, switch between build and support material in seconds, choosing from 0.8, 0.4 or 0.25mm print core for fast and detailed prints.
Ultimaker S5 is a top notch DUAL EXTRUSION 3D Printer in the Market

  • Large build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
  • Compatible with high-strength glass and carbon fiber filament
  • Down to 20 micron (0.001 inch) layer resolution
  • Open filament system – print with any 2.85 mm material
  • 4.7-inch touchscreen interface – Winner of iF Design Award 2019
ultimaker-s5
3-Ultimaker-S5-in-Pakistan
Taking Reliability to new Heights

Have full confidence in Ultimaker S5 to do its printing while you do yours. Comes with  active bed leveling that ensures a perfect first layer, glass doors control the airflow, and dual filament flow sensors will pause your print and notify you if you run out of material.

Incorporated by the World Best Brands

Technical Specification Of Ultimaker S5

Printing Technology

Fused filament fabrication (FFF)

Build Volume

330 x 240 x 300 mm

(13 x 9.4 x 11.8 inches)

Compatible Filament Diameter

2.85 mm

Maximum Power Output

500 W

Weight

20.6 kg (45.4 lbs)

Assembled Dimensions

495 x 585 x 780 mm

(19.5 x 23 x 30.7 inches)

Printer Head

Dual extrusion print head with an auto-nozzle lifting system and swappable print cores

Nozzle Diameter

0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Layer Resolution

0.25 mm nozzle: 150 – 60 micron

0.4 mm nozzle: 200 – 20 micron

0.6 mm nozzle: 300 – 20 micron

0.8 mm nozzle: 600 – 20 micron

Display

4.7-inch (11.9 cm) color touchscreen

Print Core Replacement

Swappable print cores

Operating Ambient Temperature

15 – 32 °C (59 – 90 °F)

Non Operating Temperature

0 – 32 °C (32 – 90 °F)

Build Plate

20 – 140 °C heated glass build plate

Build Plate Heat-Up Time

< 4 minutes (from 20 to 60 °C)

Build Speed

< 24 mm³/s

Build Plate Leveling

Advanced active leveling

Nozzle Temperature

180 – 280 °C

Nozzle Heat-Up Time

< 2 minutes

Operating Sound

< 50 dBA

Supported OS

MacOS, Windows, and Linux

Supported File Types

Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG

Printable formats: G, GCODE, GCODE.gz, UFP

Plugin Integration

SolidWorks, Siemens NX, Autodesk Inventor

File Transfer

Wi-Fi, Ethernet, USB

Supplied Free Software

Ultimaker Cura  – print preparation software

Ultimaker Digital Factory – printer management software

Extended Support

Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more.

Expert Support

Market-leading technical support via email, phone, or from our global community is available to you in your language and timezone.

Training

Training is available online or via our dedicated network of local service partners.

Register your Ultimaker 2+ Connect for a free, online setup and onboarding tutorial in the Ultimaker 3D Printing Academy.

Warranty Period

12 months

Ultimaker-S5-Pro-Bundle-Pakistan

Ultimaker S5 can be made more dynamic

By upgrading to the Ultimaker S5 Pro Bundle

Transform your 3D Printing workflow using an automated filament handling system that can handle multiple filament spools; at the same maintaining efficient air quality and humidity

Ultimaker S5 can print in a variety of Material

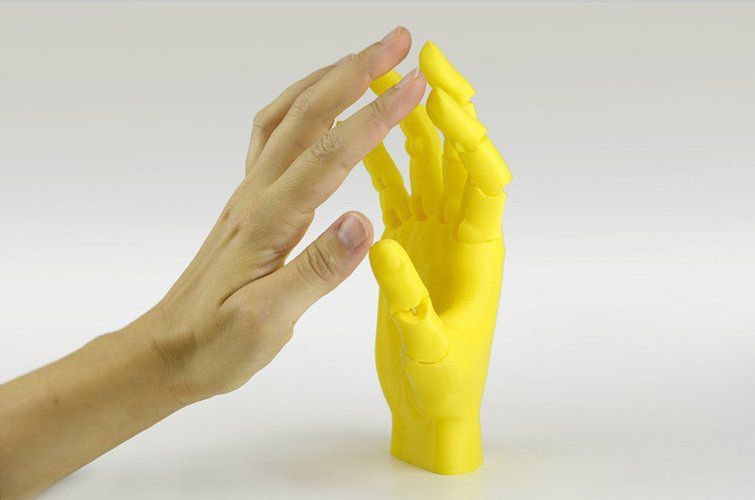

Ultimaker PLA

Ultimate Strength  Stiffness  Printability

Eco Friendly  Surface Finish

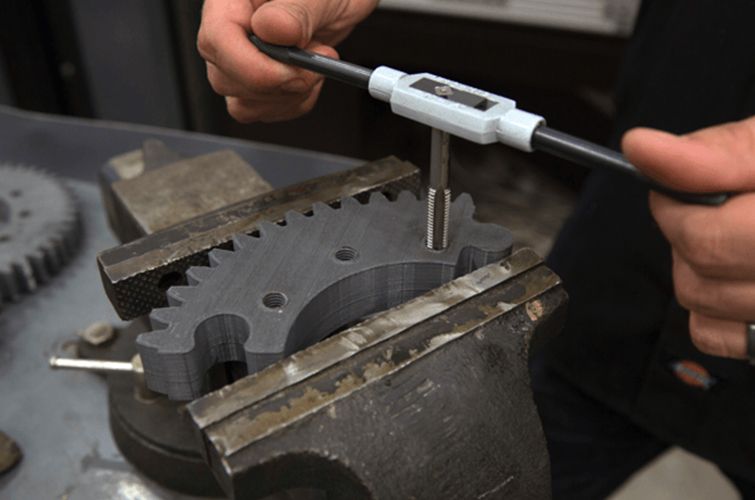

Ultimaker Tough PLA

Impact Strength  Hardness  Toughness

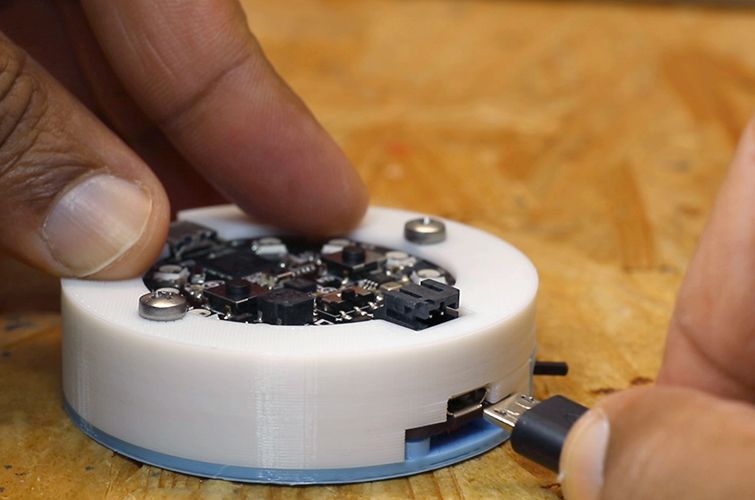

Ultimaker ABS

Ultimate Strength  Hardness

Impact Strength  Heat Resistance

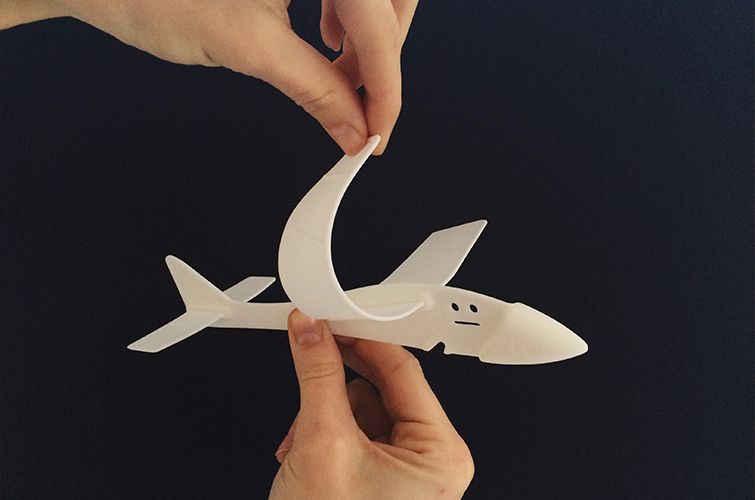

Ultimaker NYLON

Durability  Ultimate Strength  Flexible

Impact Resistance  Heat Resistance

Fatigue Resistance

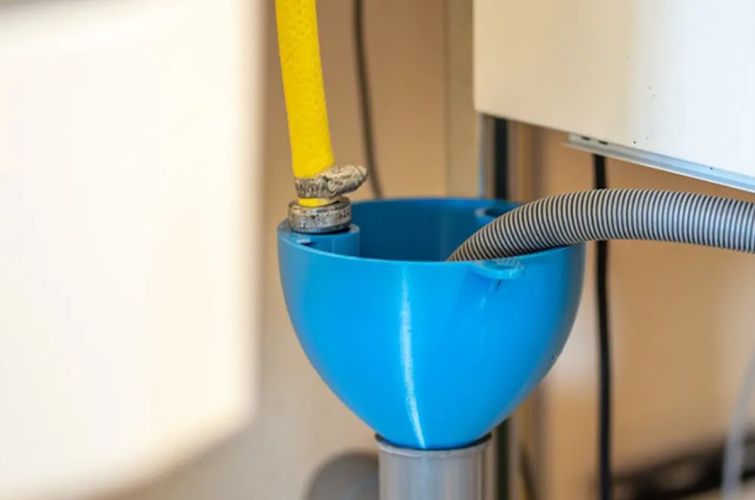

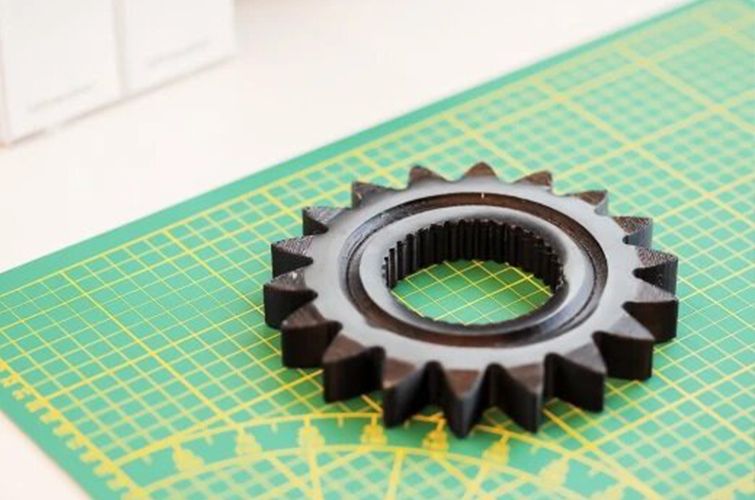

Ultimaker CPE

Ultimate Strength  Hardness

Impact Strength

Ultimaker CPE+

Ultimate Strength  Hardness

Impact Strength  Heat Resistance

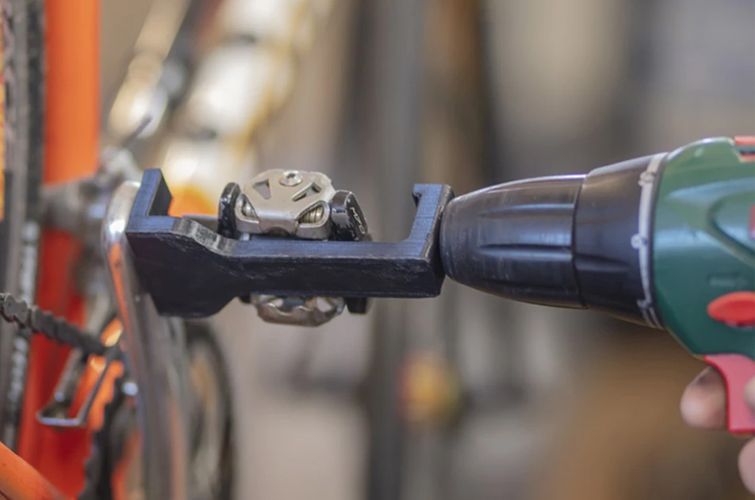

Ultimaker PC

Ultimate Strength  Durability

Impact Strength  Heat Resistance

Fatigue Resistance

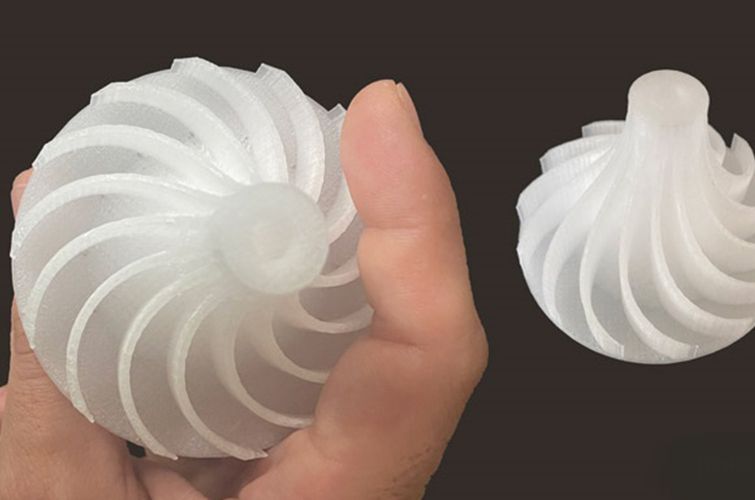

Ultimaker PP

Durability  Flexible  Soft

Water Resistance  Heat Resistance

Fatigue Resistance

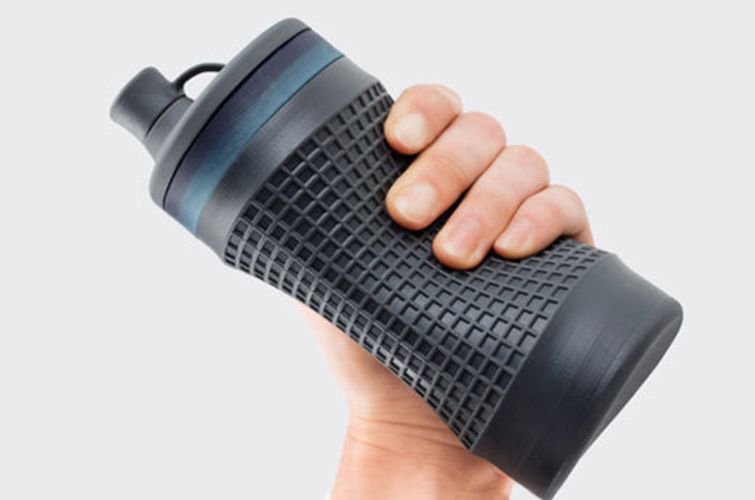

Ultimaker TPU 95A+

Wear and tear Resistance  Impact Strength

Hardness  Durability  Chemical Resistance

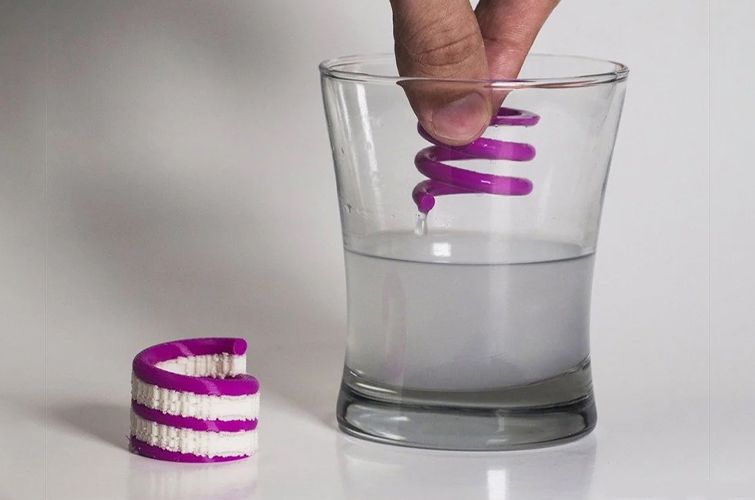

Ultimaker PVA

Ultimate Strength  Flexible

Impact Strength  Dissolvable

Fatigue Resistance

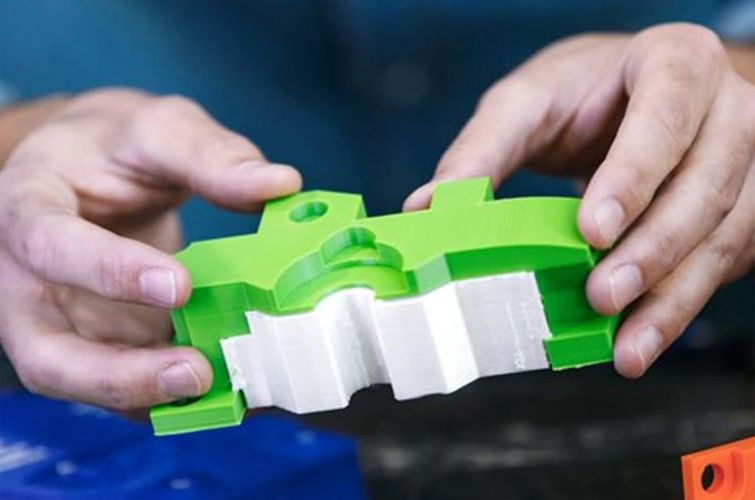

Ultimaker BREAKAWAY

Support Material  Dissolvable

Ultimaker & Grit 3D Ecosystem

SOFTWARE

The world’s most popular user-friendly slicer software for your 3D Printers
Will get you ready within minutes with a pre-installed setting. You can integrate with CAD software for easier workflow.

Support

Where ever you are: Our Support will reach You
Grit 3D has a variety of online and hand on training modules which includes hardware 3D Printers, Software Training Including Cura, and CAD integration. Our training modules are both in English and Urdu to reach out to the local Pakistani Audience.
